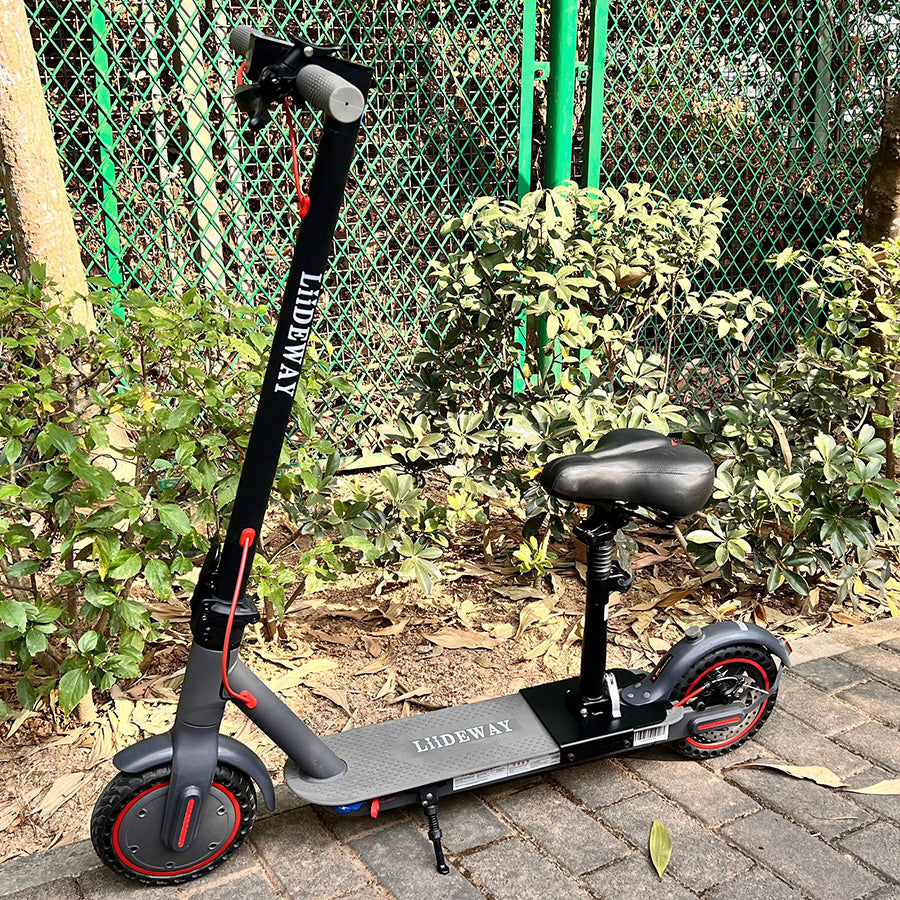

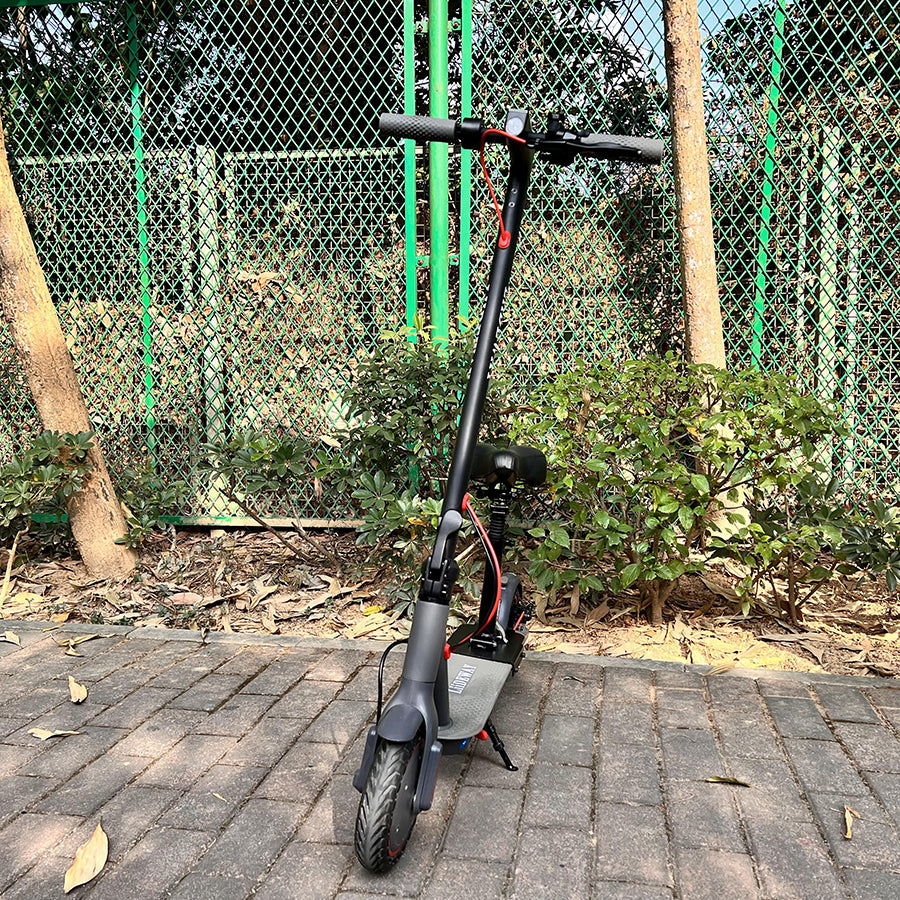

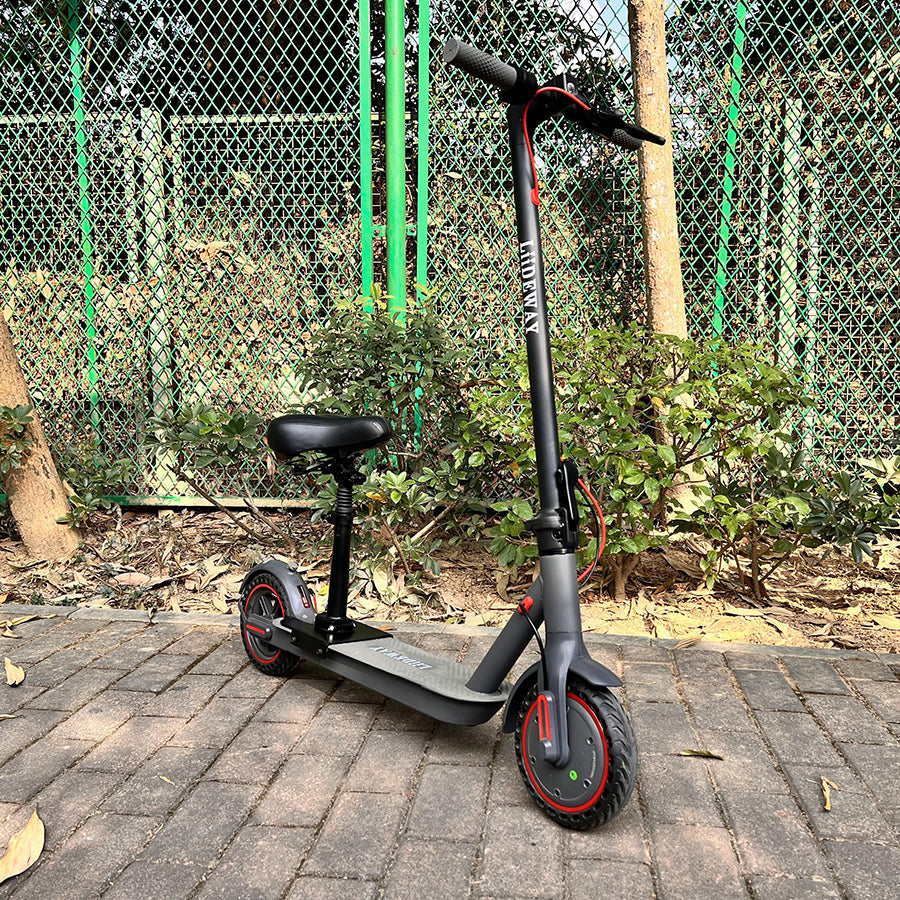

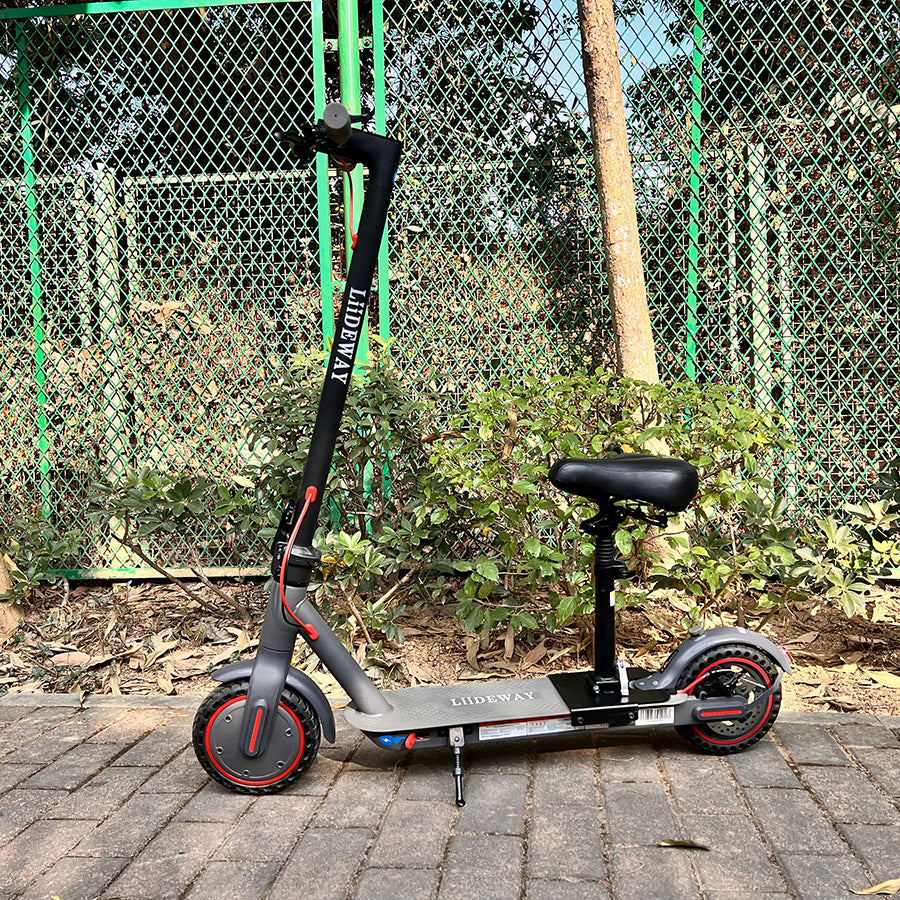

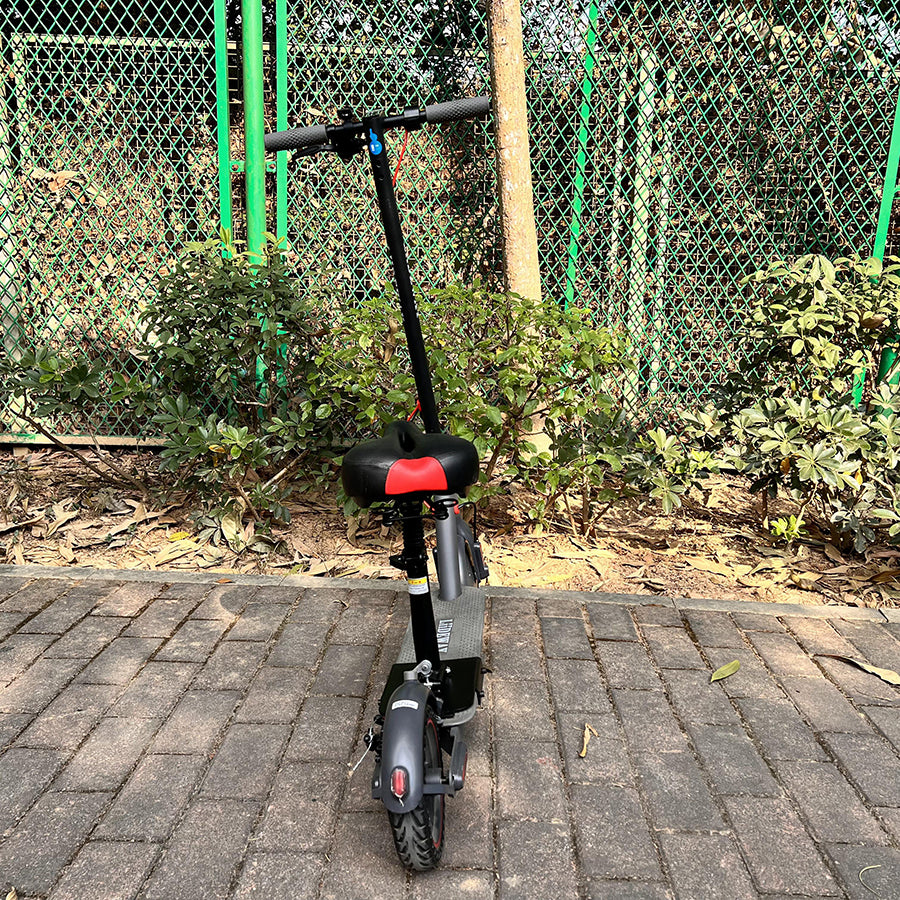

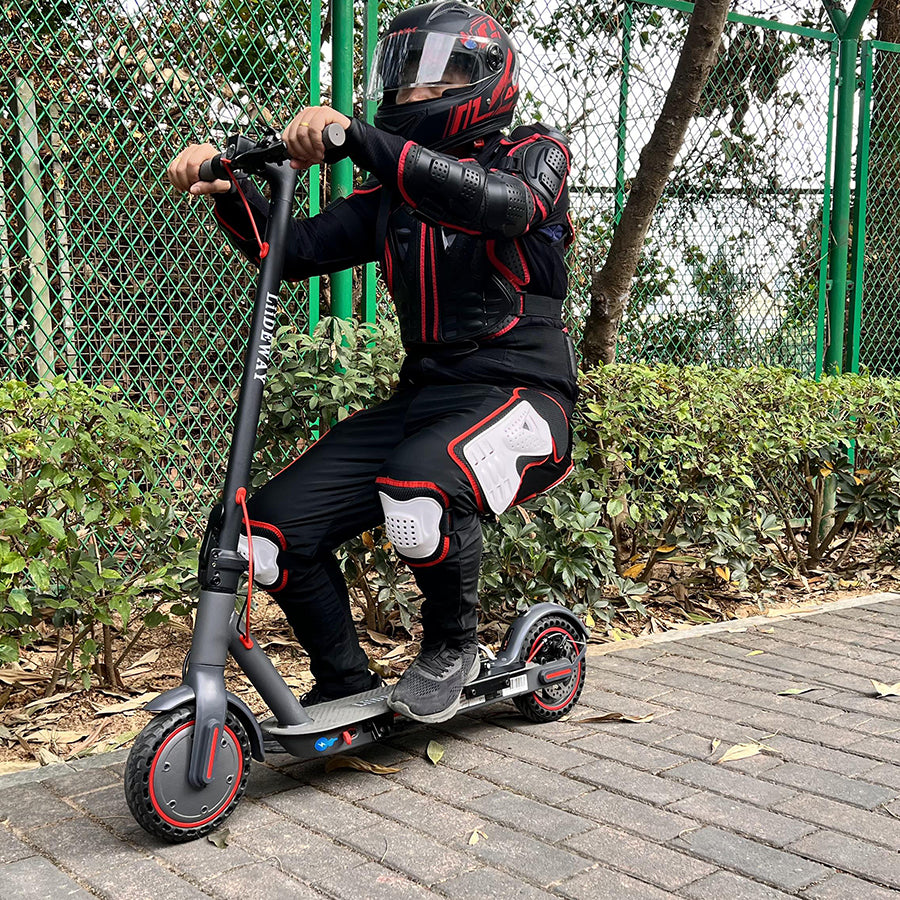

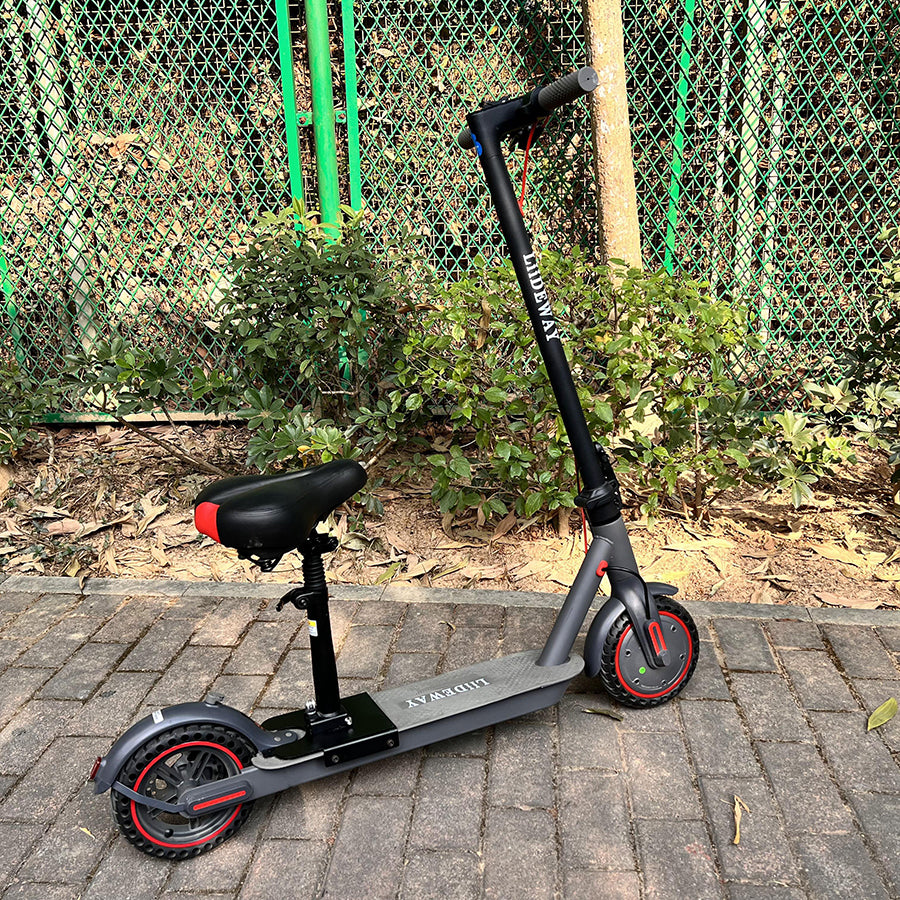

Electric scooter T1 liideway single motor

Electric scooter single motor with 48v 13ah battery  T1

Electric scooter liideway T1 is designed in China, suitable for European and American,Middle East,Asia people.Electric scooter maximum speed can reach 45km/h, showcasing the power of the electric scooter to the fullest extent.Electric scooter can not only be used for trip, but also for short distances Go to work, Electric scooter go to the park,play with friends in residential or supermarkets. If Electric scooter T1 the battery runs out, you can replace  electric scooter T1 at any time.If you driving electric scooter are tired from standing, you can sit in electric scooter seat with screen,Electric scooter can display speed, time, and the status of the lights. Even at night, T1 E-scooter headlights, electric scooter T1 side lights, electric scooter T1 tail lights,electric scooter T1 turn signals, etc. to add more safety, and electric scooter alarm system T1,Electric scooter will bring you more fun and happiness. Choosing Liideway Electric scooter is the most correct thing you do,


Electric scooter liideway T1 Main parameter

Model number:T1
Max Speed:45KM/H
Distance Range:30-40km
Battery capacity:48V 13AH
Removable battery:Equipped with waterproof battery box and waterproof connector for quick removal(optional)
Motor:48v 1650W single motor
Seat:Shock-absorbing seat(optional)
Charing time:5-10hours
Brake:Front/rear Disc Brake
Max Load:100-150KG
waterproof IP Rating:IP54
Screen:6inch LCD screen with Induction switch
Handlebar:T-handlebar
Front light:Yes
Taillight:Yes
Brake light:Yes
Turn light:Yes
Side flash light:Yes


Electric scooter Liideway  are securely secured with special packaging materials (7 layers of kraft paper, foam, and straps) to avoid damage during shipping.Electric scooter liideway can be transported multiple times by hand,Electric scooter will not easily cause damage, ensuring that the electric scooter will not be scratched or damaged,providing users with a good experience. Choosing liideway electric scooter will bring you more joy, enjoyment, and convenience,


Electric scooter Package info T1

Pedal width:25CM
N.W:20G
G.W:35KG
Carton weight/seat:5KG/2.5KG
Product size:117*25*129CM
Folding size:117*25*45CM
Packing size: 120x28x49CM
20FT:169pcs
40HQ:412pcs
45HQ:473pcs


Electric scooter T1 liideway use vacuum wide+electric rubber+Electic scooter aluminum alloy wheels+electric scooter off-road tires, which can be used without inflation for a long time, making them convenient and durable.Electric scooter liideway have a long life time, good elasticity, and are comfortable to ride.Liideway electric scooter can loading to 150KG and are suitable for any road surface without any obstacles,Using high-strength springs for shock absorption,Electric scooter T1 is very soft and comfortable to pass through shock absorption belts, grasslands, stone roads, and mountainous,The electric scooter body is made of aluminum alloy+steel, which is durable and has received excellent reviews after years of testing and user feedback.When you take your family on a trip, put liideway electric scooter in the car, bring your children and beautiful wife, and you can enjoy happiness in any corner of the world.


Electric scooter T1 Liideway Mechanical Control

Electric scooter T1 Front wheel

Size:10inch vacuum off road tires
material:Aluminum alloy Rim with Rubber tire
Tire type:90/55-6

Electric scooter T1 Rear wheel

Size:10inch vacuum off road tires
Material:Aluminum alloy Rim with Rubber tire
Tire type:90/55-6

Shock absorbs:Front and rear spring shock absorbers
Main frame:Aluminum+Steel
Max steering angle:60°(each side)
Handgrip material:Rubber (black color)
Fold-able:Yes
Foot pad material:Sand paper
kickstand:Steel


 Electric scooter T1 liideway have adopted the strongest power type battery (18650) with the strongest 5C discharge, which is currently the safest,most energy-efficient, and fastest to charge. electric scooter T1 can climb hills quickly and bring a strong impact to people,electric scooter T1 can be charged below 0 degrees Celsius, or even at a high temperature of 40 degrees Celsius.Liideway electric scooter can provide protection against overheating, overcurrent, overcharging, and short circuit, bringing us convenience.This is also liideway electric scooter direction and goal that Liideway have been striving for. Please support liideway electric scooter


Electric scooter Electronic control T1

Electric scooter Battery T1

Capacity:13AH
Charging Temperature:0~40℃ (indoor)
Max. Charging voltage:54V
Battery Management System:Over-heating, short circuit,over-current and over-charge protection
Charging time:5hours


The controller electric scooter T1 liideway   use is currently the most stable, similar to electric bicycles and motorcycles, which have been recognized in the market for over 10 years,Most importantly,electric scooter controllers  T1 that provide 200% protection for electric scooter.The controller has been waterproof, dustproof, shockproof, and overheat protected, which is also a heart part of Liideway electric scooter, bringing us endless power and confidence

Controller

Feature:9-tube Zhengxuan Wave
Voltage:48v
Undervoltage:40/51+0.5V
Phase angle:120
Function:3-speed cruise
LC:30+1A


Electric scooter motor is liideway electric scooter engine and the core part. electric scooter T1 adopts brushless and waterproof treatment, and the ceramic cylinder is made of aluminum+copper material,greatly enhancing electric scooter motor T1 stability and efficiency, and can quickly dissipate heat.liideway electric scooter have also strengthened communication between the software and motor protocols, integrating the latest technologies available

Electric scooter Motor T1 Liideway

Type:Hall Brush-less DC Motor
Rated power:1000w
Max power:1650W
Turn On-Off:Software Protocol+ Electronic Control

T1 Electric scooter liideway chargers come with CE, UL, SAA and certification from different countries, with fast charging and overcharge protection function.liideway electric scooter can be carried around and are lightweight, providing protection for liideway electric scooter

Electric scooter Charger T1

Output Voltage:54.6V DC
utput Current:2A
Input Voltage:100-240V～ 50/60Hz

T1 Liideway electric scooter customers can choose more accessories, such as electric scooter bags, electric scooter chargers, electric scooter screens, electric scooter battery, electric scooter tire and so on which can bring you more convenience at any time

Standard Accessories

48v 2AH charger
Tools
USB phone bracket
Manual

Electric scooter Optional T1:

1.10inch wide off-road tires
2.2A UL charger:15$(free)
3.Seat+13$ (free)
4.USB phone charging:5$(free)
5.6inch LCD screen:13$(free)
6.removable battery:28us$ (free)
7.with logo(pole and footboard) and carton logo(free)
8.waterproof strip(free)
9.4pcs shock absorbers (free)
